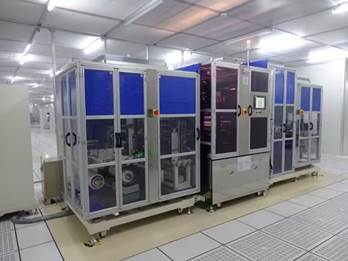

´¥ÃþÆÁÍøÃæAVI/AOI¼ì²â--Web Inspection System ÍøÃæ¼ì²âϵͳ
ËÜÁÏÍøÃæ¼ì²âϵͳÌṩ¿¿µÃסµÄȱµã¼ì²â£¬¾«È·µÄȱµã¼ø±ðºÍ¸ßÖÊÁ¿µÄ¿ÉÊÓ»¯Í¼Æ¬£¬ÊÇÒ»¸öÊ¢¿ªµÄ¿ÉÍØÕ¹Æ½Ì¨¡£

É豸¹æ¸ñÒªÇó£º

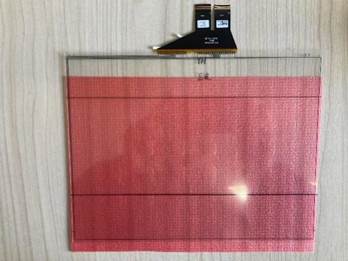

Ò»¡¢Line name²úÏßÃû³Æ£ºTouch Panel
¶þ¡¢Material ×ÊÁÏ£ºOptical Film ¸ßµÍÁÏ·½Ê½£º¾í¶Ô¾í
Èý¡¢Line speed²úÏßËÙ¶È£ºDepends on how many fake defects(cannot guaranty the line speed)
ËÄ¡¢Sheet width±¡Ä¤¿í¶È£ºMin 390 - Max 510 mm
Îå¡¢Sheet thickness±¡Ä¤ºñ¶È£º50-100 microns(DITO)
Áù¡¢Web wanderÆ«ÒÆÁ¿£º< 1mm (including centering variation)
Æß¡¢Environment Temp »·¾³Î¶ȣºLower than 50¡æ (around the camera)
°Ë¡¢Humidity ʪ¶È£ºLower than 90%RH
¾Å¡¢TARGET DEFECT Ö¸±êȱµã
1) The target defects are Cu residue, Bubble, Dot, Dent, Scratch, Dirt.
¼ì²âµÄÖ¸±êȱµãΪCu²ÐÁô,ÆøÅÝ£¬Dot£¬°¼ºÛ£¬»®ÉË£¬Dirt¡£
2) The size of defects is bigger than the resolution with sufficient contrast(S/N>3)
ȱµã³ß´ç´óÓÚ·Ö±æÂÊ£¬ÇÒÓÐ×ã¹»µÄÐÅÔë±È(S/N>3)¡£
3) The target inspection area is only the Viewing Area(VA). The Copper Trace Area(TA)and the Exclusive Area (EA) are out of scope.
Ö¸±ê¼ì²âÇøÓòÖ»ÊÇVA.ÍTA ºÍ EA²»ÊǼì²âÖ¸±êÇøÓò¡£
4) Mura, Pixelated Cu residue and other unknow defects are out of scope¡£
Mura,Pixelated (É¢µã×´)Cu²ÐÁôºÍÆäËûδ֪ȱµã²»ÊǼì²âÖ¸±ê¡£
5) If the piece is not square (include corner R etc.), increasing overkill. ÈôÊǹ¤¼þ²»ÊÇÕý·½Ðεģ¨Ô̺¬Ô²½ÇRµÈ£©£¬Ôò»áÔö³¤¹ýɱ¡£

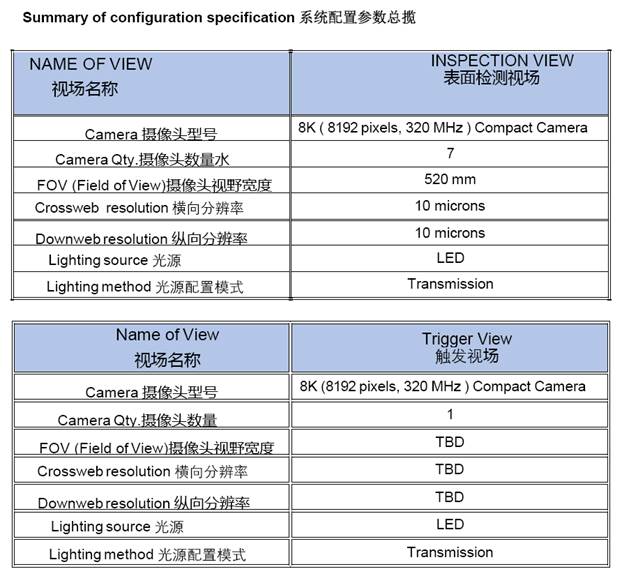

Ê®¡¢¹âѧÅäÖ㺣¨²Î¿¼£©
